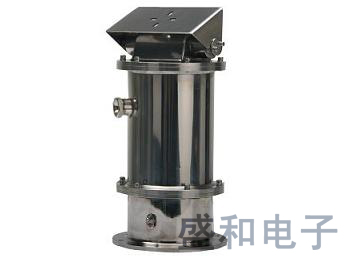

Model: SHY201
Name: Ex PTZ
Ex Mark: ExdⅡCT6/DIP A20 TA,T6
IP Level: IP68
Description:
SHY201 Explosion-proof Pan/tilt is designed for use in explosive atmosphere such as gas group ⅡC (typical gas vapours: hydrogen, acetylene, ethene, coke-oven gas and methyl ether etc.) as well as flammable dust.
It is designed according to National standard and is built to IP68 protection level requirement.
The pan/tilt has a huge load capacity, smooth rotation, smaller noise and high reliability.
Its built-in decoder controls its rotation, camera lens and wiper.
With highest compound explosion-proof certification, it has proper configuration, light weight as well as easy installation and maintenance, providing best safety control.
|
Model |
SHY201 |
|
Certification Parameter |
|
|
Manufacturers Standard |
GB3836-2000, GB12476.1-2000 |
|
Configuration Mode |
Explosion-proof spigot joints |
|
Explosion-proof Mark |
ExdⅡCT6 / DIP A20 TA,T6 |
|
IP |
IP68 |
|
Operating Temperature |
-25°～60℃注 note |
|
Relative Humidity |
≤95% (+25℃) |
|
Cable Entries |
2×G1/2”Explosion-proof cable entries , Dia. of inner hole Φ12 |
|
Mechanical Features |
|
|
Material |
Carbon steel / Stainless steel (304/316L) |
|
Pan/Tilt Range |
360° / ±60° |
|
Pan/Tilt Rotate Speed |
10 °/s |
|
Pan/Tilt Driving Torque |
20 N. m / 30 N. m |
|
Gear Clearance |
±0.3° |
|
Electric Motor |
The permanent magnetism DC motor of high torque matches the planetary gear reducer of high precision |
|
Transmission Structure |
All-gear structure |
|
Outside Dimensions |
210×165×345 |
|
Weight |
11 Kg |
|
Built-in Decoder With ZOOM Control |
|
|
Communication Interface |
RS-485 semiduplex |
|
Communication Protocol |
PELCO-D (other protocols replaced according to consumer’s demands) |
|
Baud Rate |
1200 / 2400 / 4800 / 9600 / 19200 |
|
Power Supply |
|
|
Voltage |
220V AC |
|
Current |
0.5 A |
|
Others |
|
|
Optional |
Heater |
